Home RIGID

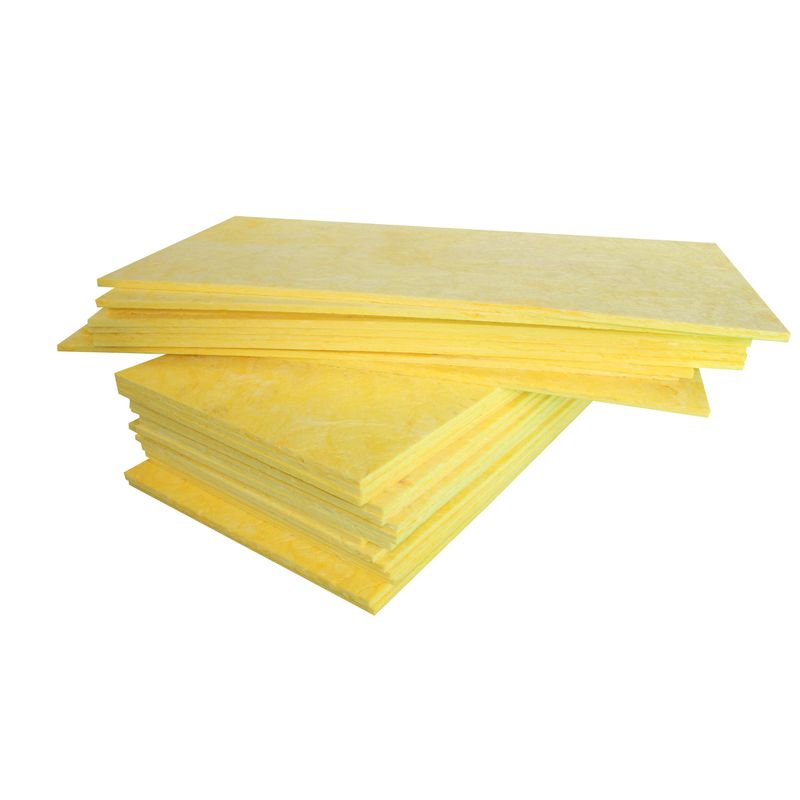

GLASS WOOL BOARD

AVAILABLE FORMS

Rigid Panel

Product Description

United Insulation rigid glasswool board provides an excellent balance of both thermal and acoustic insulation properties, which render it suitable for a broad range of industrial applications. It is particularly suited to the mechanical services industry where design requirements dictate optimum performance from internally lined air conditioning ducts, plant room and equipment casings

message

Product Code	Density	Thickness	Width	Conductivity	Packing	PKG/40'HQ
	(kg/m3)	(mm)	(mm)	(W/m•K)	(pcs/PKG)	(No#)
UET RIGID 6425	64	25	1200	0.034	1	Loading Qty, Please consult
UET RIGID 6430	64	30	1200	0.034	1
UET RIGID 6450	64	50	1200	0.034	1
UET RIGID 8025	80	25	1200	0.033	1
UET RIGID 8030	80	30	1200	0.033	1
UET RIGID 8050	80	50	1200	0.033	1
UET RIGID 9625	96	25	1200	0.032	1
UET RIGID 9630	96	30	1200	0.032	1
UET RIGID 9650	96	50	1200	0.032	1

Conductivity Value tested under temperature in 23°C

Consult your local sales representative for other available sizes and specification

Tested Content	Tested Method	Tested Value
Density	ASTM C612	80kgs/m3
Thickness	GB/T 13350-2008	50mm
Average diameter of fibers	GB/T 13350-2008	6.0μm
Coefficient of Heat Conductivity	EN12667	0.033W/m·K
Thermal Resistance	ASTM C653	1.50m²·K/W
Average NRC	EN ISO 354	1.00
Maximum Service Temperature	ASTM C411	170°C
Corrosion Resistance	ASTM C665	No Chemical Reaction
Mold Resistance	ASTM C665	Mildew proof
Moisture Absorption	ASTM C1104	Less 3% by weight
Humidity veneration Rate	ASTM E96	Max 0.013g/24Hours·m²
Non-Combustibility	ASTM E84	Flame Propagation: 25; Flame Diffusivity: 50
