Home METAL BUILDING
WALL INSULATION
GLASS WOOL BLANKET

AVAILABLE FORMS

Flexible Blanket and Roll

Product Description

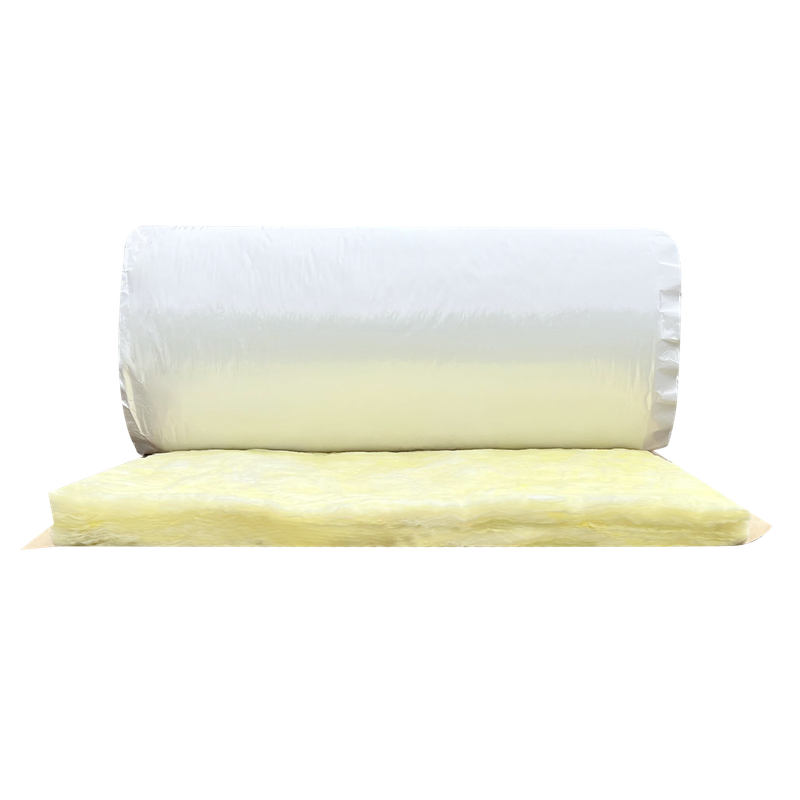

United Insulation metal building wall Insulation glass wool blanket is consisted of long, resilient fibers bonded together with a thermosetting resin to form a lightweight, flexible glass wool blanket. The blankets can be supplied with a factory applied foil vapor barrier (FSK, Vinyl, Foil, WMP, and Kraft Facing) accordingly to project designs or customer's requirement.

message

Product Code	Density	Thickness	Width	Conductivity	R-Value	Packing	PKG/40'HQ
	(kg/m³)	(mm)	(mm)	(W/m•K)	(m²•K/W)	(pcs/PKG)	(No#)
UET MBI 1250	12	50	1200	0.039	1.20	1	Loading Qty, Please consult
UET MBI 1275	12	75	1200	0.039	1.90	1
UET MBI 12100	12	100	1200	0.039	2.50	1
UET MBI 12150	12	150	1200	0.039	3.80	1
UET MBI 12200	12	200	1200	0.039	5.00	1
UET MBI 1650	16	50	1200	0.038	1.30	1
UET MBI 1675	16	75	1200	0.038	1.90	1
UET MBI 16100	16	100	1200	0.038	2.60	1
UET MBI 2450	24	50	1200	0.035	1.40	1
UET MBI 2470	24	75	1200	0.035	2.10	1
UET MBI 24100	24	100	1200	0.035	2.80

Conductivity Value tested under temperature in 23°C

Consult your local sales representative for other available sizes and specification

Tested Content	Tested Method	Tested Value
Density	ASTM C612	16kgs/m
Thickness	GB/T 17795-2008	50mm
Average diameter of fibers	GB/T 17795-2008	6.8μm
Coefficient of Heat Conductivity	EN12667	0.038W/m·K
Thermal Resistance	ASTM C653	1.30m²·K/W
Average NRC	EN ISO 354	1.00
Maximum Service Temperature	ASTM C411	177°C
Corrosion Resistance	ASTM C665	No Chemical Reaction
Mold Resistance	ASTM C665	Mildew proof
Moisture Absorption	ASTM C1104	Less 3% by weight
Humidity veneration Rate	ASTM E96	Max 0.013g/24Hours·m²
Non-Combustibility	ASTM E84	Flame Propagation: 25; Flame Diffusivity: 50
