Home HVAC

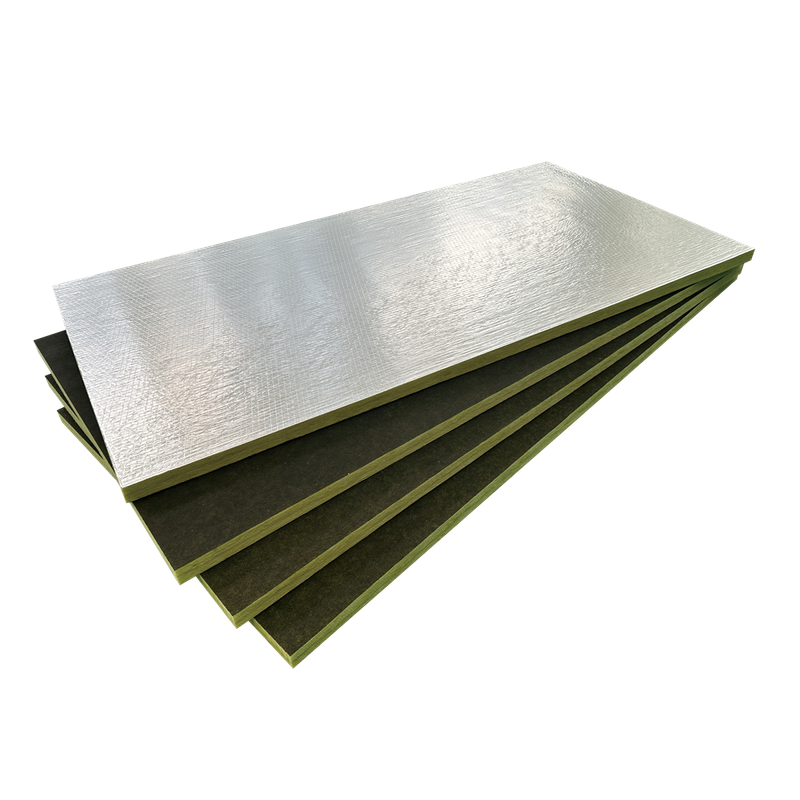

GLASS WOOL DUCT PANEL

AVAILABLE FORMS

Smei-Rigd or Rigid Panel

Product Description

United Insulation HVAC glass wool duct panel dampens unwanted noise and promotes consistent temperatures for less wasted energy. In addition, it contributes to a healthier indoor environment through less air leakage and is protected against damage from microial growth. It is easy to fabricate for faster installation. Our duct board solutions offer a wide range of benefits to fit your requirements and needs.

message

Product Code	Density	Thickness	Width	Conductivity	Packing	PKG/40'HQ
	(kg/m³)	(mm)	(mm)	(W/m•K)	(pcs/PKG)	(No#)
UET HVPL 4825	48	25	600	0.035	1
UET HVPL 4830	48	30	600	0.035	1	Loading Qty, Please consult
UET HVPL 4840	48	40	600	0.035	1
UET HVPL 4850	48	50	600	0.035	1
UET HVPL 6425	64	25	600	0.034	1
UET HVPL 6430	64	30	600	0.034	1
UET HVPL 6440	64	40	600	0.034	1
UET HVPL 6450	64	50	600	0.034	1
UET HVPL 9625	96	25	1200	0.032	1
UET HVPL 9630	96	30	1200	0.032	1

Conductivity Value tested under temperature in 23°C

Consult your local sales representative for other available sizes and specification

Tested Content	Tested Method	Tested Value
Density	ASTM C612	96kgs/m
Thickness	GB/T 13350-2008	30mm
Average diameter of fibers	GB/T 13350-2008	6.5μm
Coefficient of Heat Conductivity	EN12667	0.034W/m·K
Thermal Resistance	ASTM C653	1.40m²·K/W
Average NRC	EN ISO 354	1.00
Maximum Service Temperature	ASTM C411	170°C
Corrosion Resistance	ASTM C665	No Chemical Reaction
Mold Resistance	ASTM C665	Mildew proof
Moisture Absorption	ASTM C1104	Less 3% by weight
Humidity veneration Rate	ASTM E96	Max 0.013g/24Hours·m²
Non-Combustibility	ASTM E84	Flame Propagation: 25; Flame Diffusivity: 50
