Home CERAMIC FIBER BOARD

AVAILABLE FORMS

Product Description

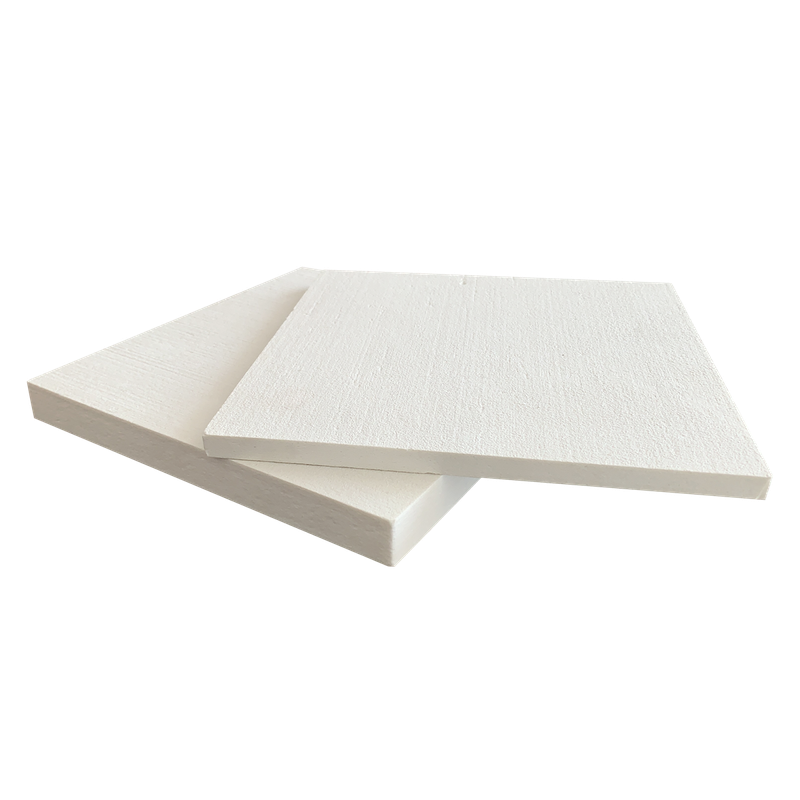

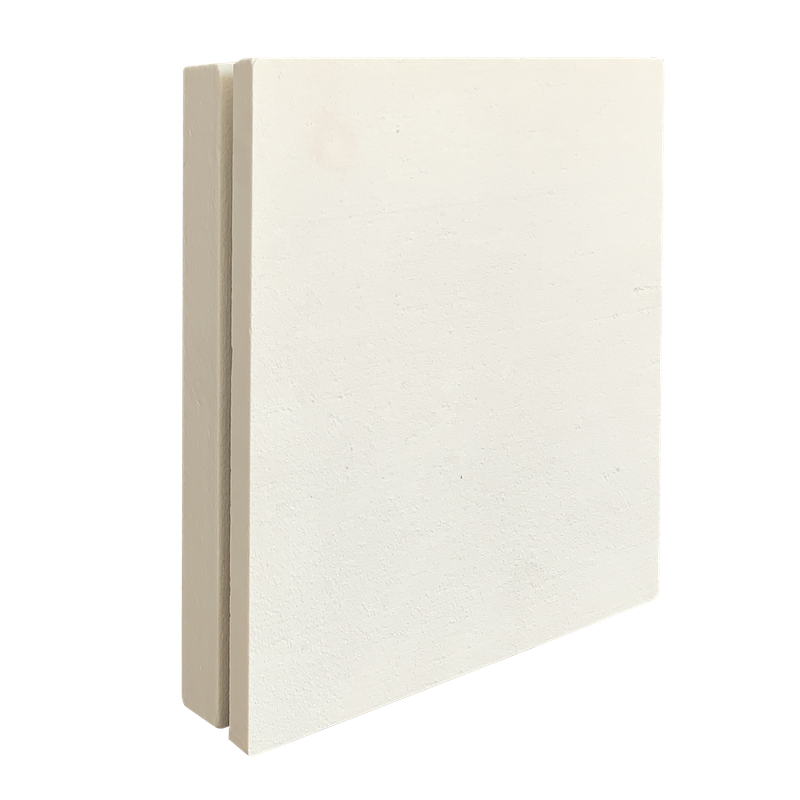

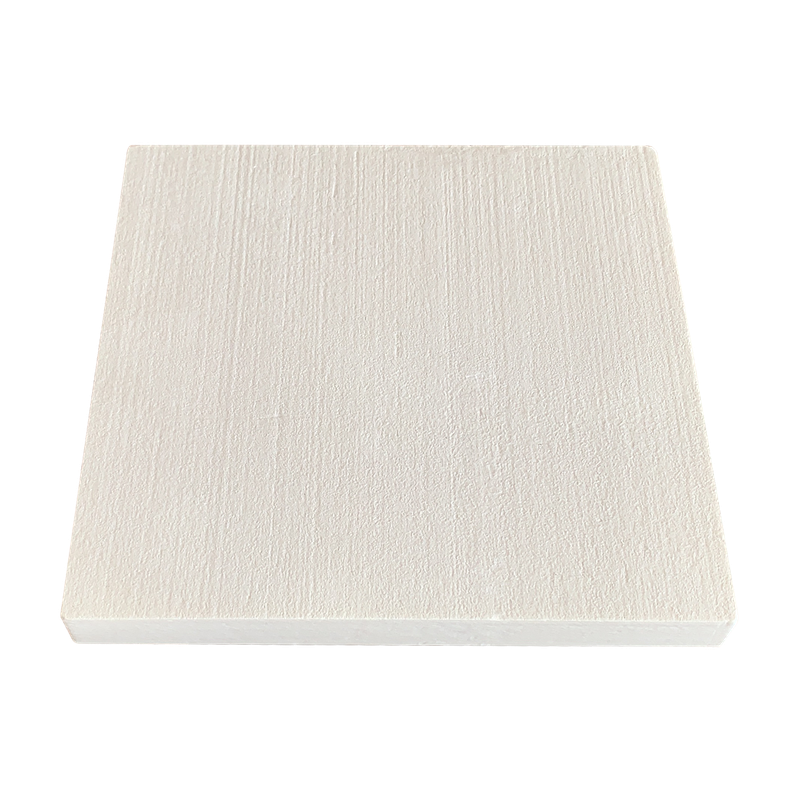

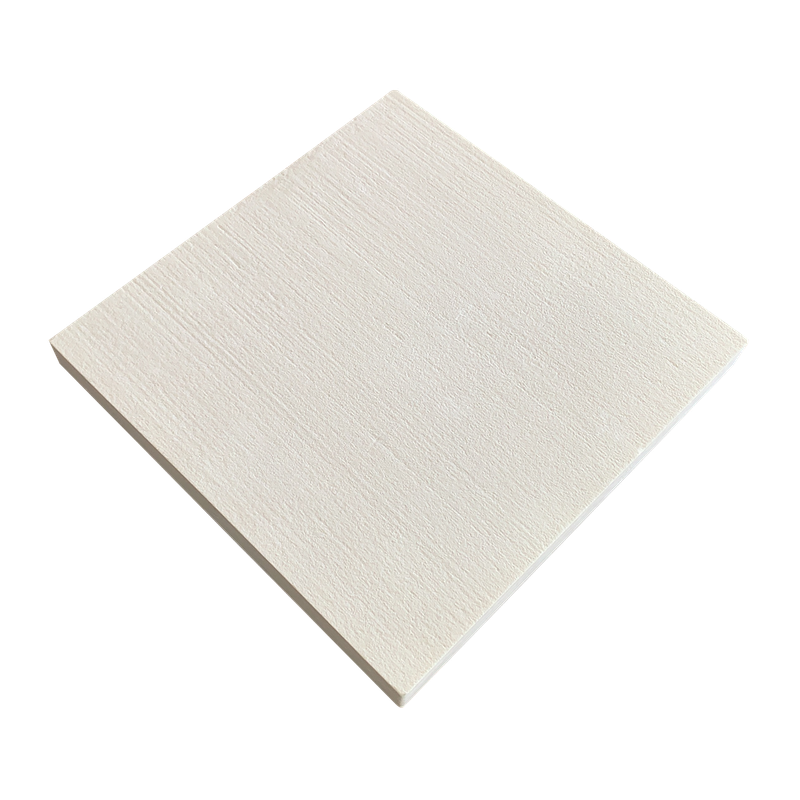

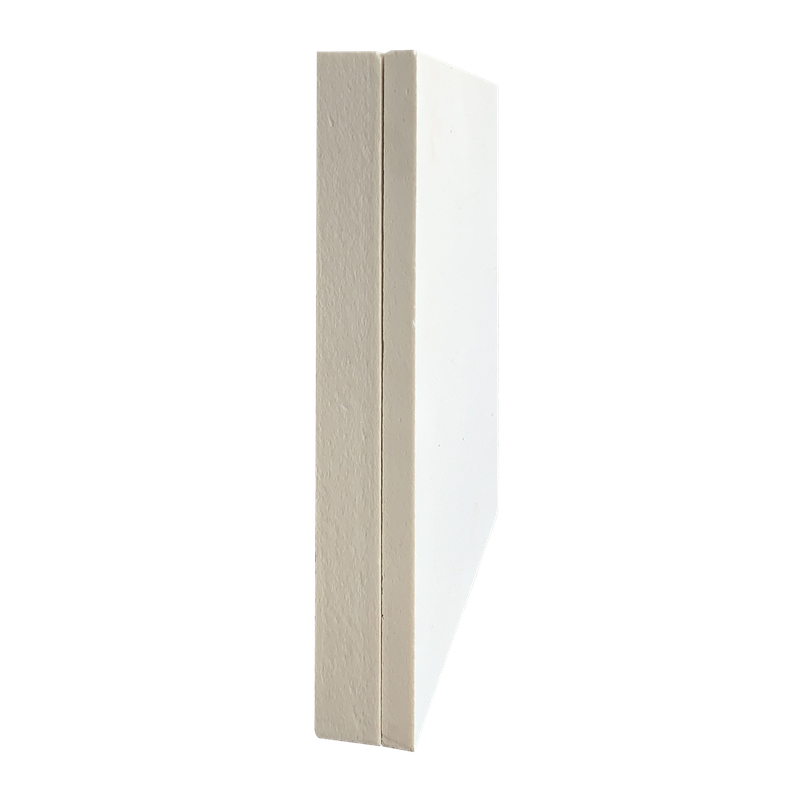

Ceramic fiber board is made by wet vacuum forming technology.lt has a higher hardness than fiber blanket and fiber felt.lt is suitable for high temperature areas where rigid strength is required.Inorganic board does not contain organic matter.In contact with open flame,high temperature or high heat it will not produce any smoke and odour.

message

Index	Normal	Standard	Low Zr	Normal Zr	ST Inorganic	Zr Inorganic
Classification Temperature(°C)	1050	1150	1260	1260	1300	1400
Working Temperature ≤(°C)	950	1050	1100	1200	1250	1300
Fiber Shrinkage≤(%)(950°C 24hrs)	2	2	2	2	2	2
Stiffness(Ha/Hd)	55	55	55	55	55	55
Stiffness(Ha/Hd)	250-400	250-400	250-400	250-400	300-500	300-500
Organic Content(≤%)	10	10	10	10	1.5	1.14
Thermal Conductivity(≤W/mk)	500°C:0.15 ,700°C:0.16,900°C:0.17,1000°C:0.18,1100°C:0.21,1200°C:0.27

CERAMIC FIBER BULK

CERAMIC FIBER BLANKET

CERAMIC FIBER MODULE

Specification	Thickness	Length	Width	Density
	(mm)	(mm)	(mm)	(kg/m³)
	10-200	600-1200	400-1000	260-500
