Home CERAMIC FIBER BLANKET

AVAILABLE FORMS

1050°C Norm 1150°C SEL 1260°C ST 1260°C HP 1300°C L-Zr 1430°C Zr

Product Description

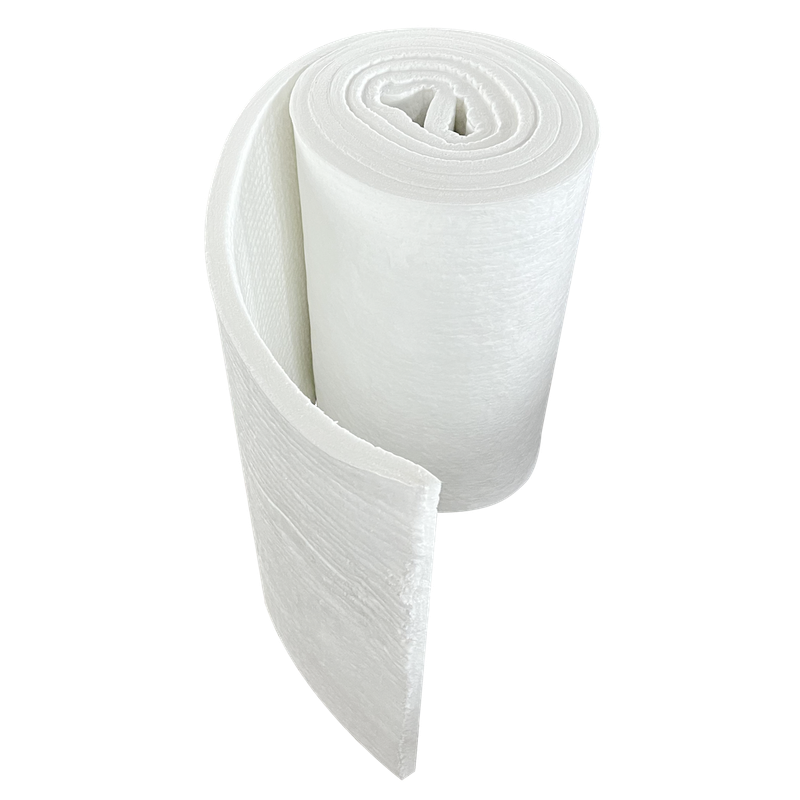

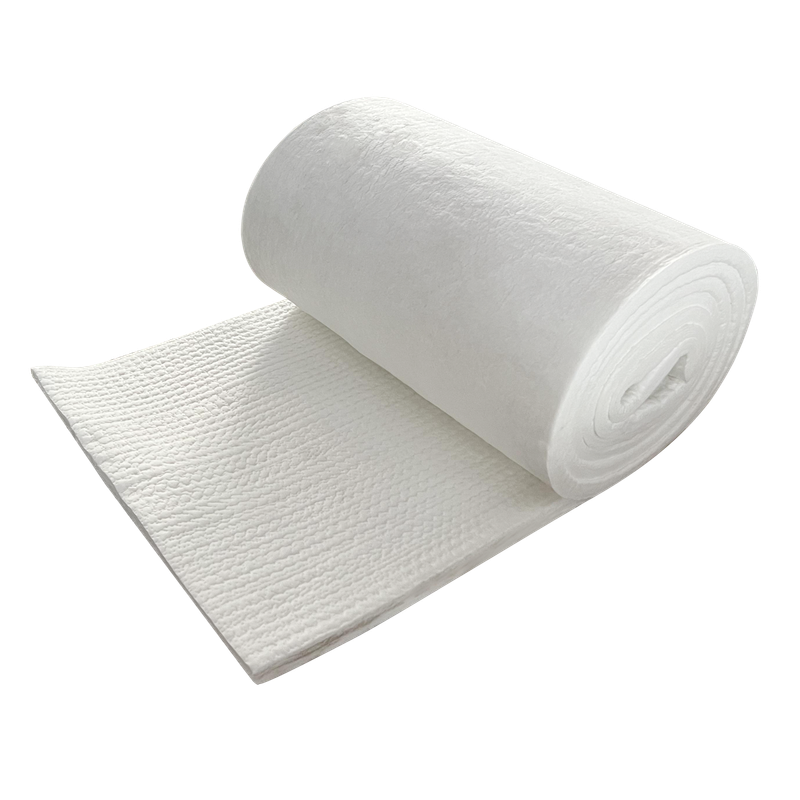

Ceramic fiber blanket is made of aluminum silicate fiber filament by special double-sided needling process.After double-sided needling technology, tensile strength and surface flatness of the fiber are greatly improved.The fiber blanket does not contain any organic binder to ensure that the ceramic fiber blanket has good manufacturability and stability under extreme environment.

message

Specification	Thickness （mm）	Length （mm）	Width （mm）	Density (kg/m³)
	10	15000	610	80-160
	20	7200	610
	25	7200	610
	30	6000	1220
	40	4500	1220
	50	3600	1220

Index	Normal	Selected	Standard	High Pure	Low Zr	Normal Zr
Classification Temperature(°C)	1050	1150	1260	1260	1300	1400
Working Temperature ≤(°C)	950	1050	1100	1200	1250	1300
Fiber Shrinkage≤(%)(950°C 24hrs)	3.5	3.5	3.5	3.5	3.5	3.5
Average Fiber Diameter(μm)	2-4	2-4	2-4	2-4	2-4	2-4
Al203 ≥(%)	40	42	44	47		37-39
Al203+Si02≥(%%)	96	96	98	99
Al203+Si02+Zr02≥(%)					99	99
ZrO2≥(%)					5	15
Fe203≤(%)	1	0.8	0.5	0.3	0.2	0.1
Shot Content(212μm，≤%)	20	20	15	15	15	15
Thermal Conductivity(≤W/mk)	500°C:0.15 ,700°C:0.16,900°C:0.17,1000°C:0.18,1100°C:0.21,1200°C:0.27
