Home Product Glass Wool SOUTH AMERICA R100 TESTING HVAC GLASS WOOL DUCT BOARD

SOUTH AMERICA R100 TESTING HVAC GLASS WOOL DUCT BOARD

AVAILABLE FORMS

Smei-Rigd or Rigid Panel

Product Description

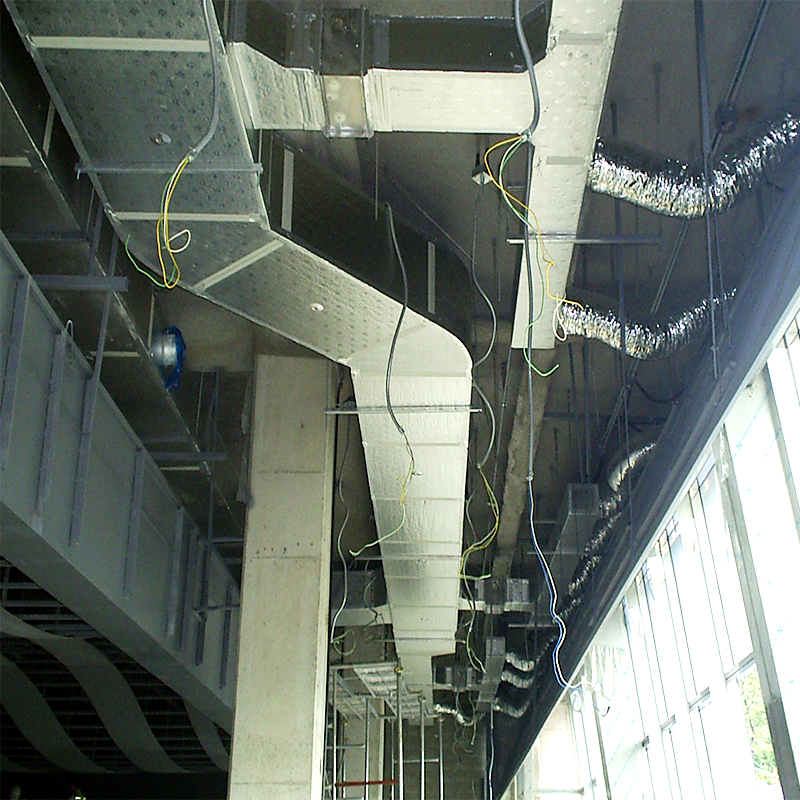

United Insulation HVAC glass wool duct panel dampens unwanted noise and promotes consistent temperatures for less wasted energy. In addition, it contributes to a healthier indoor environment through less air leakage and is protected against damage from microial growth. It is easy to fabricate for faster installation. Our duct board solutions offer a wide range of benefits to fit your requirements and needs.

message

Tested Content	Tested Method	Tested Value
Density	ASTM C612	96kgs/m
Thickness	GB/T 13350-2008	30mm
Average diameter of fibers	GB/T 13350-2008	6.5μm
Coefficient of Heat Conductivity	EN12667	0.034W/m·K
Thermal Resistance	ASTM C653	1.40m²·K/W
Average NRC	EN ISO 354	1.00
Maximum Service Temperature	ASTM C411	170°C
Corrosion Resistance	ASTM C665	No Chemical Reaction
Mold Resistance	ASTM C665	Mildew proof
Moisture Absorption	ASTM C1104	Less 3% by weight
Humidity veneration Rate	ASTM E96	Max 0.013g/24Hours·m²
Non-Combustibility	ASTM E84	Flame Propagation: 25; Flame Diffusivity: 50

Download

cn.xlsx

en-after.xls

Product Name	Thickness	Width	Length	Thermal Resistance R100 Nominal Thickness/ Installed
	(mm)	(mm)	(mm)
UET HVAC board	25mm	1220mm	2440mm	75.75
	50mm	1220mm	2440mm	151.51
	75mm	1220mm	2440mm	227.27
