HomeProductGlass WoolSOUTH AMERICA R100 TESTING FRAME INSULATION ECO BROWN FIBERGLASS BATT & PRE-CUT ROLL WITH KRAFT

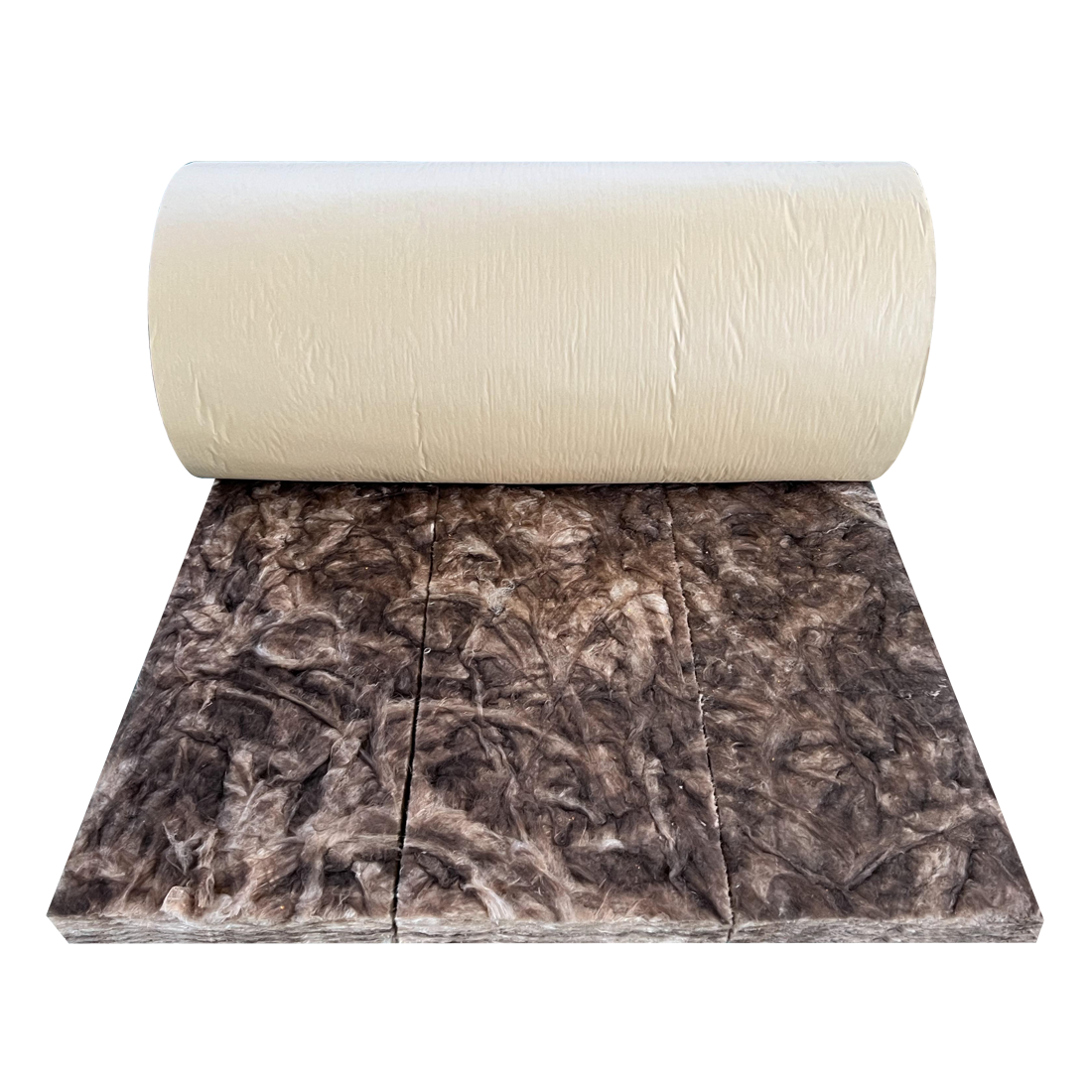

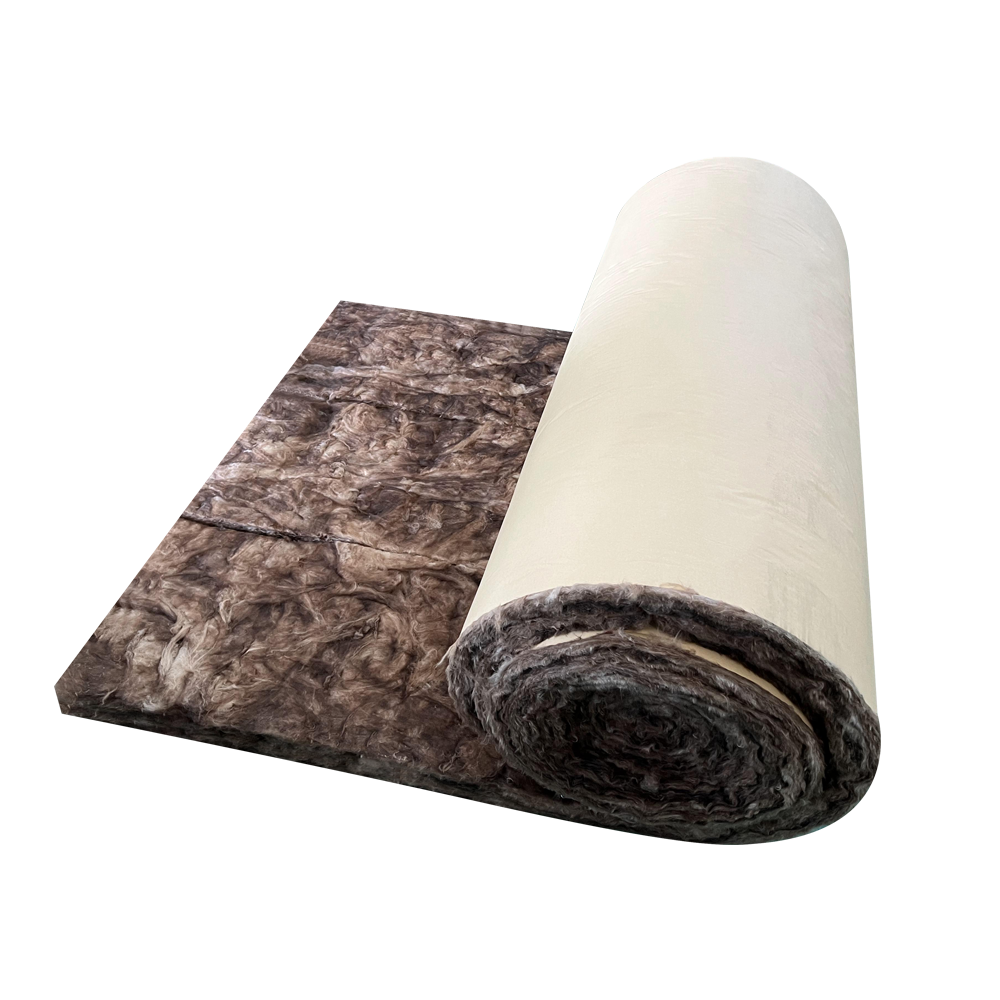

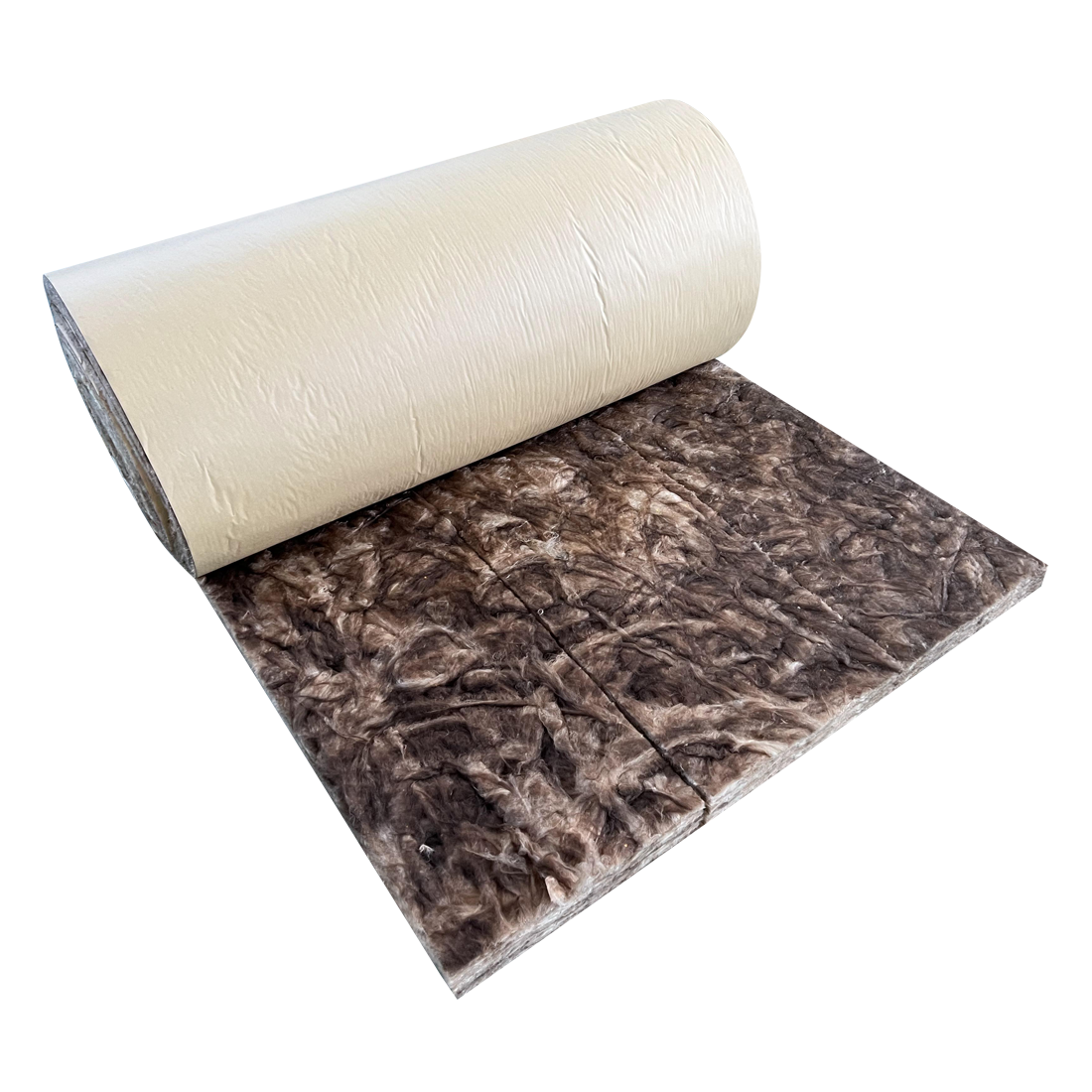

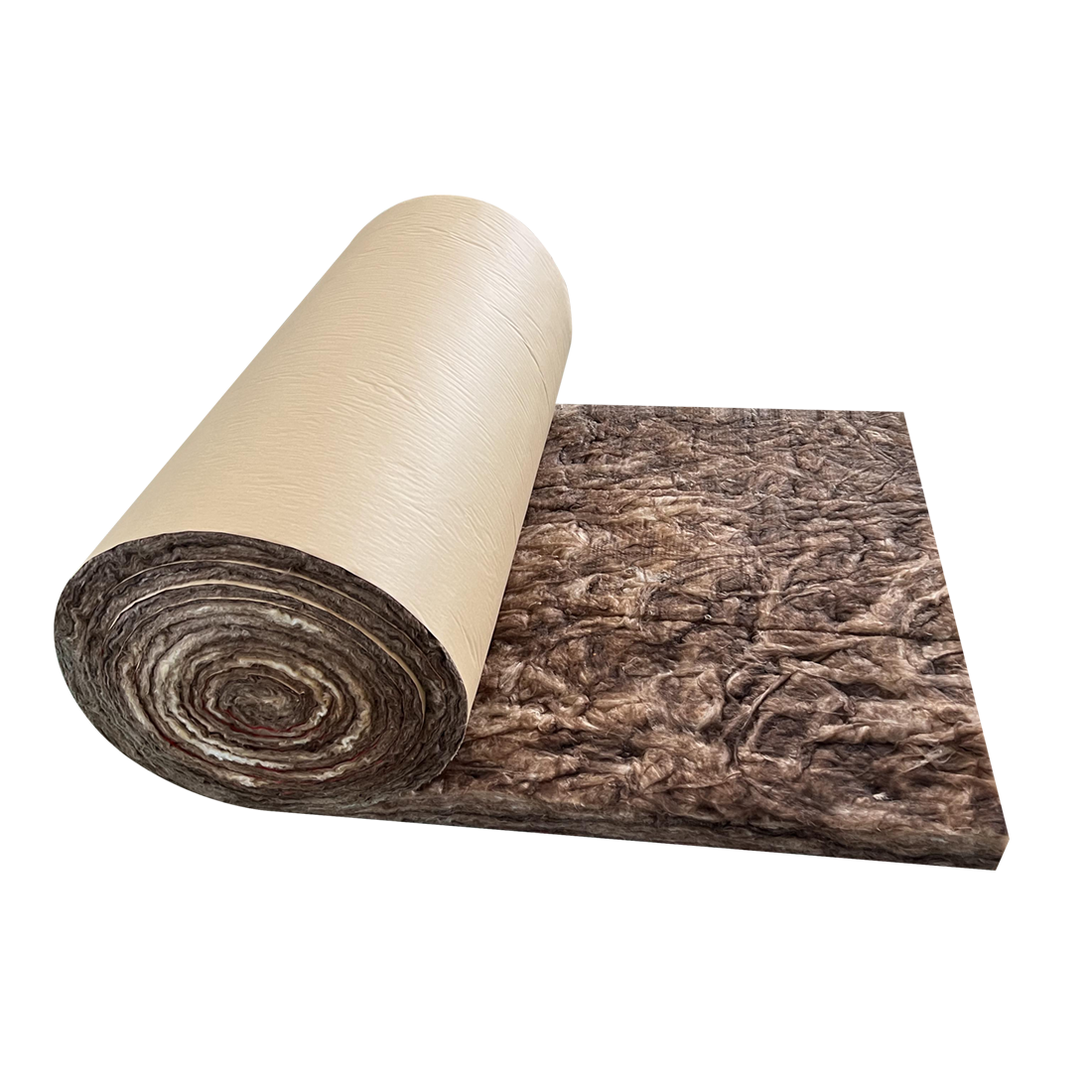

SOUTH AMERICA R100 TESTING FRAME INSULATION ECO BROWN FIBERGLASS BATT & PRE-CUT ROLL WITH KRAFT

AVAILABLE FORMS

Flexible Blanket and Roll

Product Description

United Insulation fiberglass insulation products are consisted of long, resilient fibers bonded together with a thermosetting resin to form a lightweight, flexible glass wool batts or rolls. Both batts and rolls can be supplied with a factory applied foil vapor barrier(FSK, Vinyl, Foil, WMP, and Kraft Facing) accordingly to customer's requirement.

message

Tested Content	Tested Method	Tested Value
Density	ASTM C612	12kgs/m³
Thickness	GB/T 17795-2008	100mm
Average diameter of fibers	GB/T 17795-2008	6.5μm
Coefficient of Heat Conductivity	EN12667	0.039W/m·K
Thermal Resistance	ASTM C653	2.50m²·K/W
Average NRC	EN ISO 354	0.95
Maximum Service Temperature	ASTM C411	170°C
Corrosion Resistance	ASTM C665	No Chemical Reaction
Mold Resistance	ASTM C665	Mildew proof
Moisture Absorption	ASTM C1104	Less 3% by weight
Humidity veneration Rate	ASTM E96	Max 0.013g/24Hours·m²
Non-Combustibility	ASTM E84	Max 0.013g/24Hours·m²

Application	Lenth	Width	Thickness	R100	PKG/40'HQ
	(m)	(mm)	(mm)		(No#)
UET BATT/PCR	7.2m-24m	406/610/1200mm	40mm	94	Loading Qty, Please consult
		406/610/1200mm	50mm	122
		406/610/1200mm	80mm	188
		406/610/1200mm	100mm	235
		406/610/1200mm	120mm	282
		406/610/1200mm	140mm	329
		406/610/1200mm	160mm	376
