Home Product Glass Wool NZ CODEMARK CERTIFIED HVAC GLASS WOOL DUCT WRAP

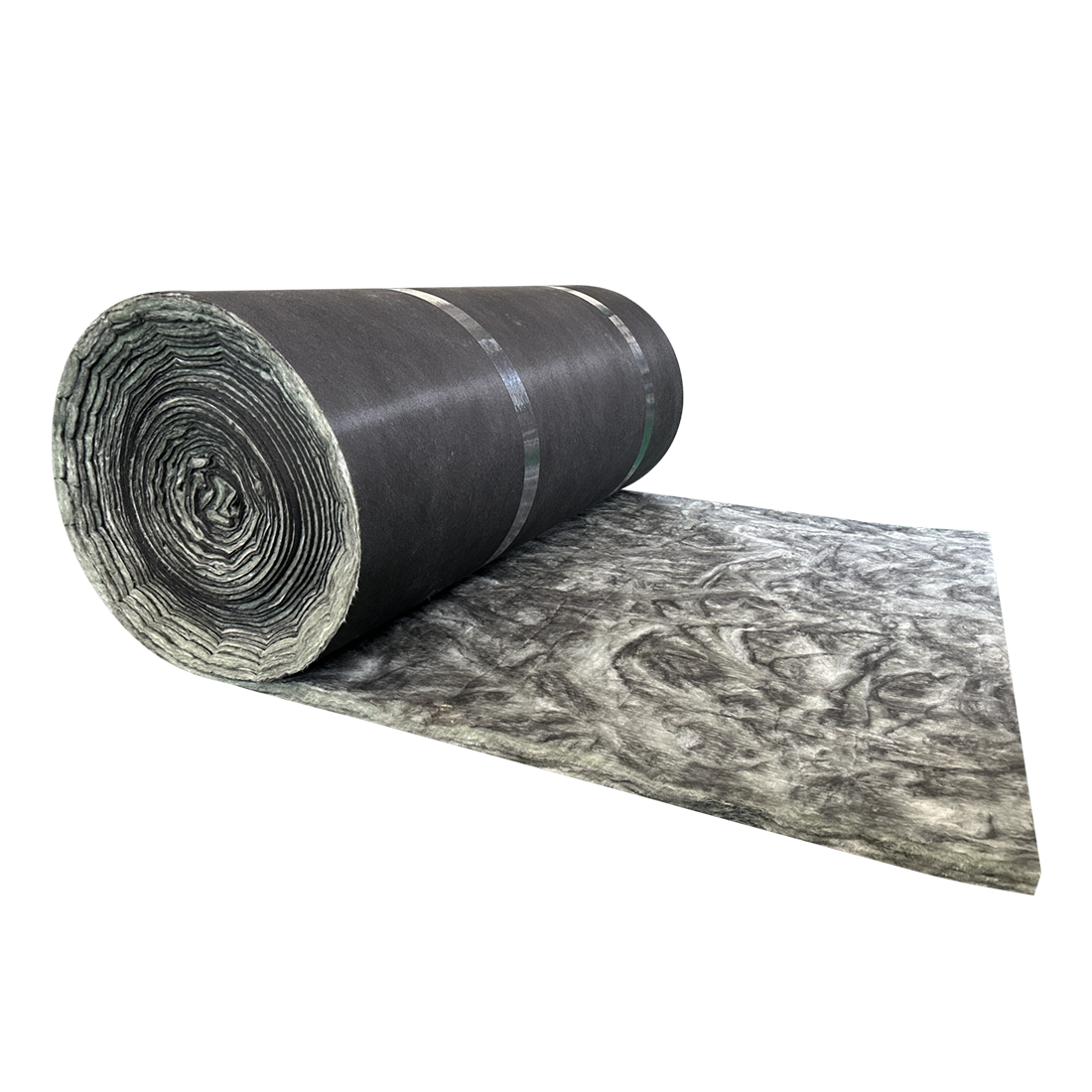

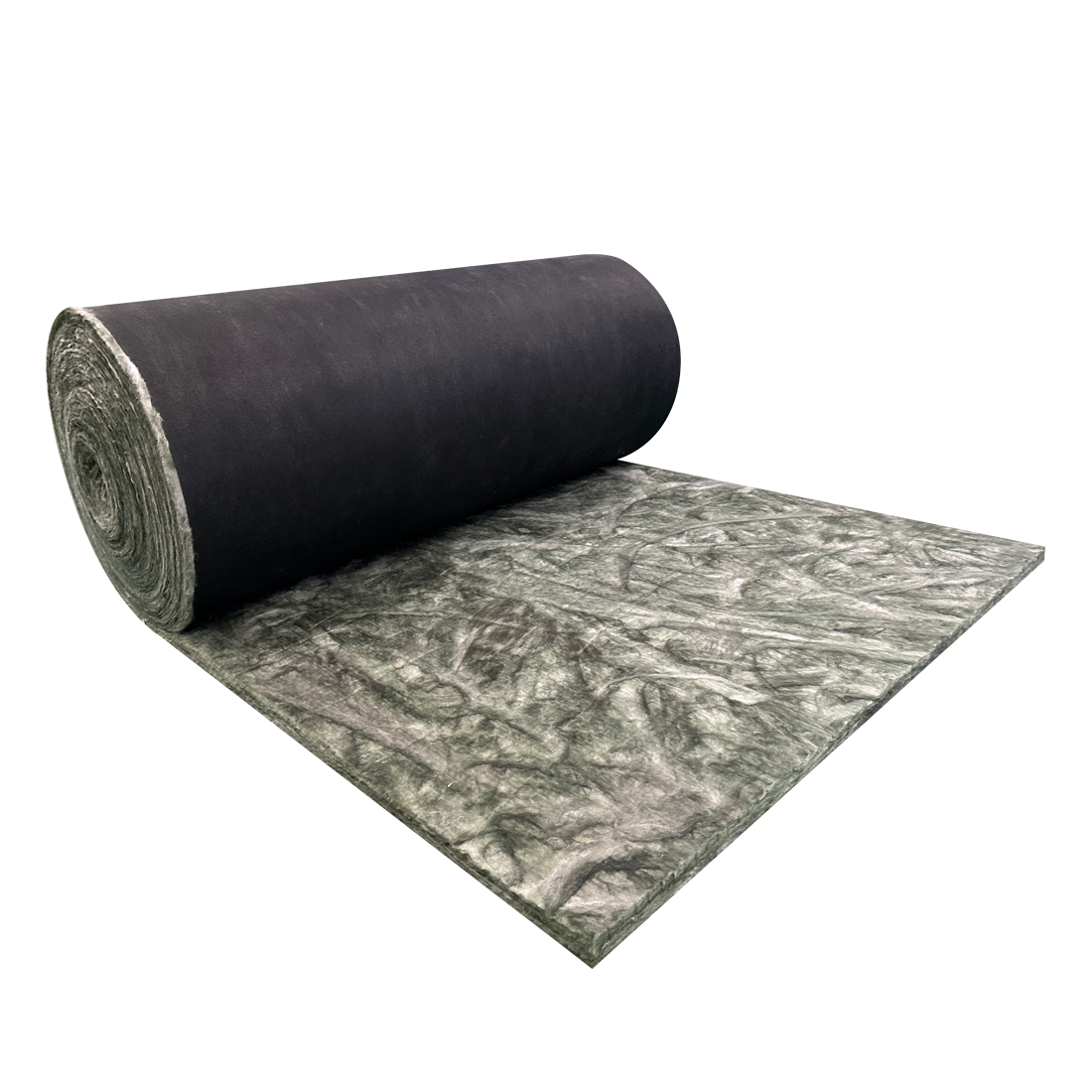

NZ CODEMARK CERTIFIED HVAC GLASS WOOL DUCT WRAP

AVAILABLE FORMS

Flexible Blanket

Product Description

United Insulation HVAC glass wool duct wrap is a lightweight, highly resilient, blanket-type, thermal and acoustical insulation made from glass fibers bonded with a thermosetting phenolic resin. Our duct wrap solutions offer a wide range of benefits to fit your requirements and needs. Helps air duct system maintain a consistent air temperature, reduces condensation and absorbs draft and system operation noise for improved duct system efficiency

message

Tested Content	Tested Method	Tested Value
Density	ASTM C612	24kgs/m³
Thickness	GB/T 17795-2008	50mm
Average diameter of fibers	GB/T 17795-2008	6.5μm
Coefficient of Heat Conductivity	EN12667	0.037W/m·K
Thermal Resistance	ASTM C653	1.35m²·K/W
Average NRC	EN ISO 354	0.95
Maximum Service Temperature	ASTM C411	170°C
Corrosion Resistance	ASTM C665	No Chemical Reaction
Mold Resistance	ASTM C665	Mildew proof
Moisture Absorption	ASTM C1104	Less 3% by weight
Humidity veneration Rate	ASTM E96	Max 0.013g/24Hours·m²
Non-Combustibility	ASTM E84	Flame Propagation: 25; Flame Diffusivity: 50

Download

cn.xlsx

en-after.xls

Product Code	Thickness	Width	Length	Thermal Resistance R100 Nominal Thickness/ Installed
	(mm)	(mm)	(m)
UET HVAC Wrap	25mm	1200mm	15/30m	72.73
	38mm	1200mm	15/30m	91.7
	50mm	1200mm	15/30m	121.67
