Home Product Glass Wool AUSTRALIA CODEMARK CERTIFIED RESIDENTIAL INSULATION ECO BROWN FIBERGLASS CEILING BATTS

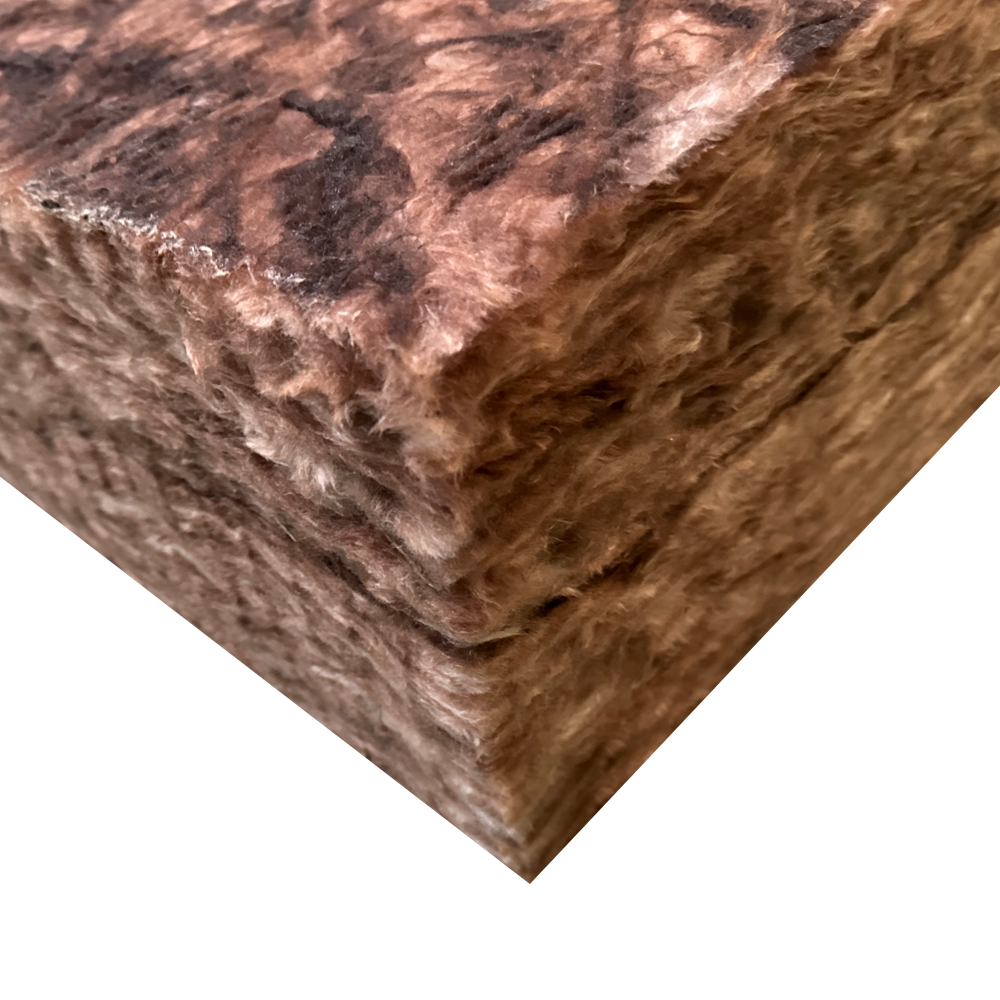

AUSTRALIA CODEMARK CERTIFIED RESIDENTIAL INSULATION ECO BROWN FIBERGLASS CEILING BATTS

AVAILABLE FORMS

Batts and Pre-Cut Roll

Product Description

United Insulation glass wool batts and pre-cut rolls are consisted of long, resilient fibers bonded together with a thermosetting resin to form a lightweight, flexible glass wool batts or rolls. Both batts and rolls are pre-cut to fit snugly between wall studs, ceiling and floor joist. However, only rolls or blanket insulation provide continuous coverage because of their extended lengths. Both batts and rolls can be supplied with a factory applied foil vapor barrier (FSK, Vinyl, Foil, WMP, and Kraft Facing) accordingly to project designs or customer's requirement.

message

Application	R-value	Width	Lenth	Thickness	PKG/40'HQ
	(m2°C/W)	(mm)	(mm)	(mm)	(No#)
Ceiling Batts	R2.5	430/580mm	1160mm	120mm	Loading Qty, Please consult
	R3.0	430/580mm	1160mm	145mm
	R3.5	430/580mm	1160mm	165mm
	R4.0	430/580mm	1160mm	175mm
	R4.1	430/580mm	1160mm	195mm
	R5	430/580mm	1160mm	220mm
	R6	430/580mm	1160mm	250mm
	R7	430/580mm	1160mm	285mm

Conductivity Value tested under temperature in 23°C

Consult your local sales representative for other available sizes and specification

Tested Content	Tested Method	Tested Value
Density	ASTM C612	12kgs/m³
Thickness	GB/T 17795-2008	100mm
Average diameter of fibers	GB/T 17795-2008	6.5μm
Coefficient of Heat Conductivity	EN12667	0.039W/m·K
Thermal Resistance	ASTM C653	2.50m²·K/W
Average NRC	EN ISO 354	0.95
Maximum Service Temperature	ASTM C411	170°C
Corrosion Resistance	ASTM C665	No Chemical Reaction
Mold Resistance	ASTM C665	Mildew proof
Moisture Absorption	ASTM C1104	Less 3% by weight
Humidity veneration Rate	ASTM E96	Max 0.013g/24Hours·m²
Non-Combustibility	ASTM E84	Max 0.013g/24Hours·m²
